Fibre Laser Protective Windows — Raytools, Precitec, WSX | Fused Silica

$21.95

Fused silica protective windows for fibre laser cutting heads, in sizes from 18×2mm to 37×7mm and power ratings up to 20kW. Anti-reflective coated for 1064nm. Fits Raytools, Precitec, WSX, Ospri and Boci heads. In stock, shipped Australia-wide from Brisbane.
<br>
Buy in bulk and save: 10-packs available at a discounted rate — select "10 Pack" above. Ideal for keeping spares on the shelf.

SKU: PW0001

Size: 18 x 2 <4kW

18 x 2 <4kW
21.5 x 2 <20kW
24.9 x 1.5 <10kW
25.4 x 4 <10kW
27.9 x 4.1 <10kW
32 x 2 <10kW
30 x 5 <4kW
30 x 5 <6kW
34 x 5 <20kW
36 x 5 <20kW
37 x 7 <20kW
Description

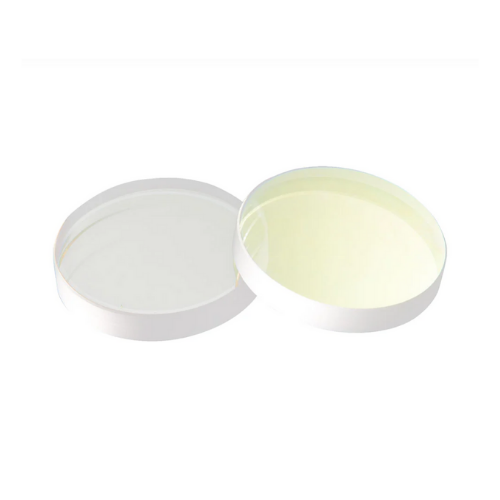

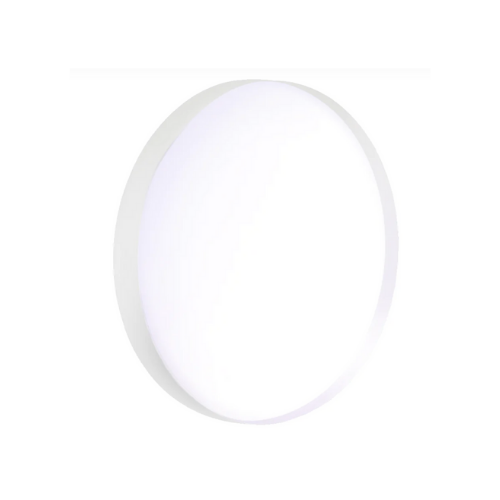

Fibre Laser Protective Windows

Replacement fused silica protective windows (cover slides) for fibre laser cutting heads. The protective window sits below the focus lens and shields your optics from spatter, smoke and debris — a cheap consumable that protects an expensive lens. Available in sizes from 18×2mm to 37×7mm to suit machines up to 20kW.

Specifications

  • Material: high-purity fused silica
  • Optical transmission: over 99.95% at 1005–1080nm
  • Anti-reflective coated for 1064nm fibre laser wavelength
  • Surface flatness λ/10, low thermal expansion for focus stability
  • Sizes (diameter × thickness): 18×2, 21.5×2, 24.9×1.5, 25.4×4, 27.9×4.1, 30×5, 32×2, 34×5, 36×5, 37×7mm
  • Power ratings from under 4kW up to 20kW

Compatible cutting heads
Fits Raytools, Precitec, WSX, Ospri and Boci fibre laser cutting heads. Protective windows are sized to your specific head and laser power, so if you're not sure which you need, tell us your machine, head model and laser power and we'll match the right window.

Choosing a protective window
The correct size depends on your cutting head model and laser power — higher-power machines use thicker windows to handle the heat load. Always match both the dimensions and the power rating to your machine. Replace the window as soon as you see pitting, burn marks or reduced cut quality; a damaged window lets debris reach the focus lens.

Shipping
Dispatched from Brisbane, Australia-wide. In stock and ready to ship.

Why buy from DK Machine Tech
We repair fibre laser sources and rebuild cutting heads for Australian manufacturers — so the parts we supply are the same ones we fit and trust in the workshop. Technical questions welcome; you're talking to people who service these machines, not just sell parts.

Regular user? Our 10-packs save you around 17% per unit and mean you're never caught without a spare mid-job.
