FibrLyte Fusion 3kW Handheld Laser Welder — 4-in-1 Welding, Cutting & Cleaning, SUP23T Head

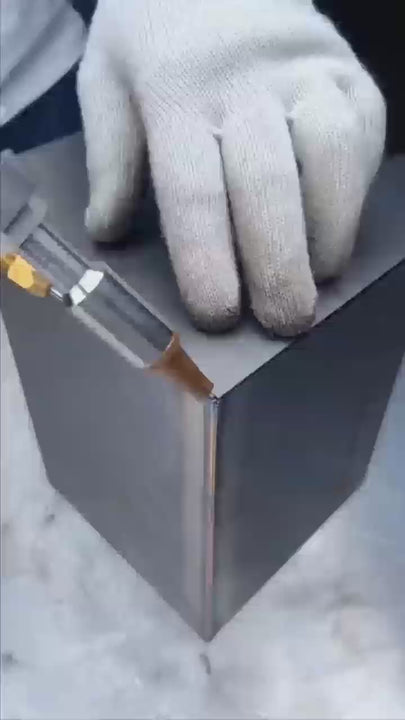

3kW handheld fibre laser welder that also cuts and cleans — one machine, three jobs. The FibrLyte Fusion YS-LW-3000w pairs a MAX 3000W fibre laser source with the SUP23T 4-in-1 handheld head and a twin wire feeder, so you can weld stainless and mild steel under 10mm, cut up to 7mm and clean rust and oxide up to 30mm wide without changing machines. It comes with freight, installation, commissioning and operator training included, and is backed by DKMT's Australian laser technicians.

Specifications

• Model: FibrLyte Fusion YS-LW-3000w
• Laser source: MAX 3000W fibre laser
• Welding head: SUP23T handheld head (welding, cutting and cleaning)
• Wire feeder: Double (twin) wire feeder included
• Protection gas: Nitrogen or argon
• Power: 415V / 3-phase / 50Hz, 12 amp (20 amp 5-pin plug), stabilising transformer included
• Fibre cable length: 10m
• Water chiller: Hanli or S&A 3000W, 13L capacity (optional)
• Materials: mild steel, stainless steel, aluminium, brass, copper, galvanised plate
• Packing: Wooden box, 130 x 110 x 150cm, 180kg
• Certification: CE

Welding, cutting & cleaning capacity (3kW)

• Welding (twin wire feeder): stainless steel and mild steel under 10mm (penetration under 7mm); galvanised under 8mm (penetration under 6mm); aluminium and brass under 7mm (penetration under 5mm)
• Cutting: stainless steel, mild steel and galvanised under 7mm; aluminium and brass under 6mm
• Cleaning: up to 30mm wide with the standard lens, on stainless, mild steel, galvanised, aluminium and brass

What's included in the price

• International freight and local delivery
• Full installation and commissioning
• Comprehensive operator training and basic maintenance training

Not included

• Crane unloading and positioning
• Service connections, including cables, hoses, ducting, gas regulators, fixtures and fittings

Warranty & support

• 12 months on machine parts
• 24 months on the laser source (parts only)
• Laser and cutting head optics and consumables are not covered by warranty
• Installation and electrical commissioning by our partner CNC Man (Capalaba, Brisbane), a licensed electrical contractor trading since 2004
• Laser source repairs done in-house in Australia by DKMT

Pricing shown is ex GST. Replacement SUP23T consumables, including nozzles, wire feed guides, protective windows and lenses, are stocked here. Not sure if this machine suits your work? Tell us your materials and thicknesses and we'll confirm before you buy. Shipped, installed and supported from our Brisbane workshop.
